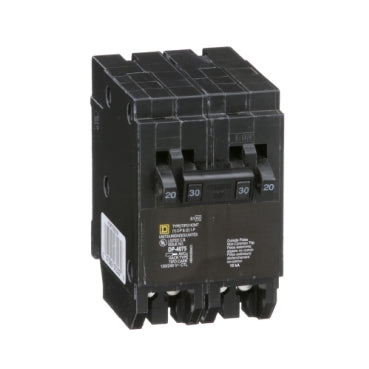

Schneider Tandem Circuit Breaker Homeline

Schneider Electric

  • $42.99
    Unit price per



Product Code: HOMT2020230CP

Circuit breaker, Homeline, 2 x 1 pole at 20A, 1 x 2 pole at 30A, 120/240VAC, 10kA AIR, plug in, UL

  • Homeline tandem circuit breaker with dual single pole's at 20 amps and a double pole at 30 amps
  • The current capacity that this circuit breaker is able to interrupt before breaking is 10kA
  • Easy plug on design with SE Homeline Loadcenters
  • Easy plug on circuit breaker that’s compatible with Square D™ Homeline Loadcenters
  • Environmental performance of the product

Description

Homeline miniature circuit breakers are engineered and designed for fast installation and superior circuit protection. Homeline circuit breakers are designed to plug into Homeline load centers to provide circuit protection. This HOMT circuit breaker is a quad tandem breaker. This quad tandem breaker occupies two HOM pole spaces. This quad tandem circuit breaker consists of a two pole breaker in the middle and a single breaker on each side. This quad tandem circuit breaker provides a standard circuit protection and is HACR rated. The two pole breaker is rated 30A at 120/240 VAC and the single pole breakers are rated 20A and 20A at 120/240 VAC. This circuit breaker provides 10 kA breaking capacity. This quad tandem breaker will accept 14 AWG to 8 AWG copper or aluminum wire. The tandem breaker is 3.13 inches tall, 2.00 inches wide and 2.98 inches deep. HOMT tandem breakers are UL Listed. Circuit breaker is consumer packaged.

Specifications

Product Miniature circuit-breaker
Range Homeline
Current Rating 20 A
30 A
Certifications UL Listed
Voltage Rating 120/240 V AC
Mounting Type Plug-in
Number of Poles 2P
1P
Short Circuit Current Rating 10 kA
