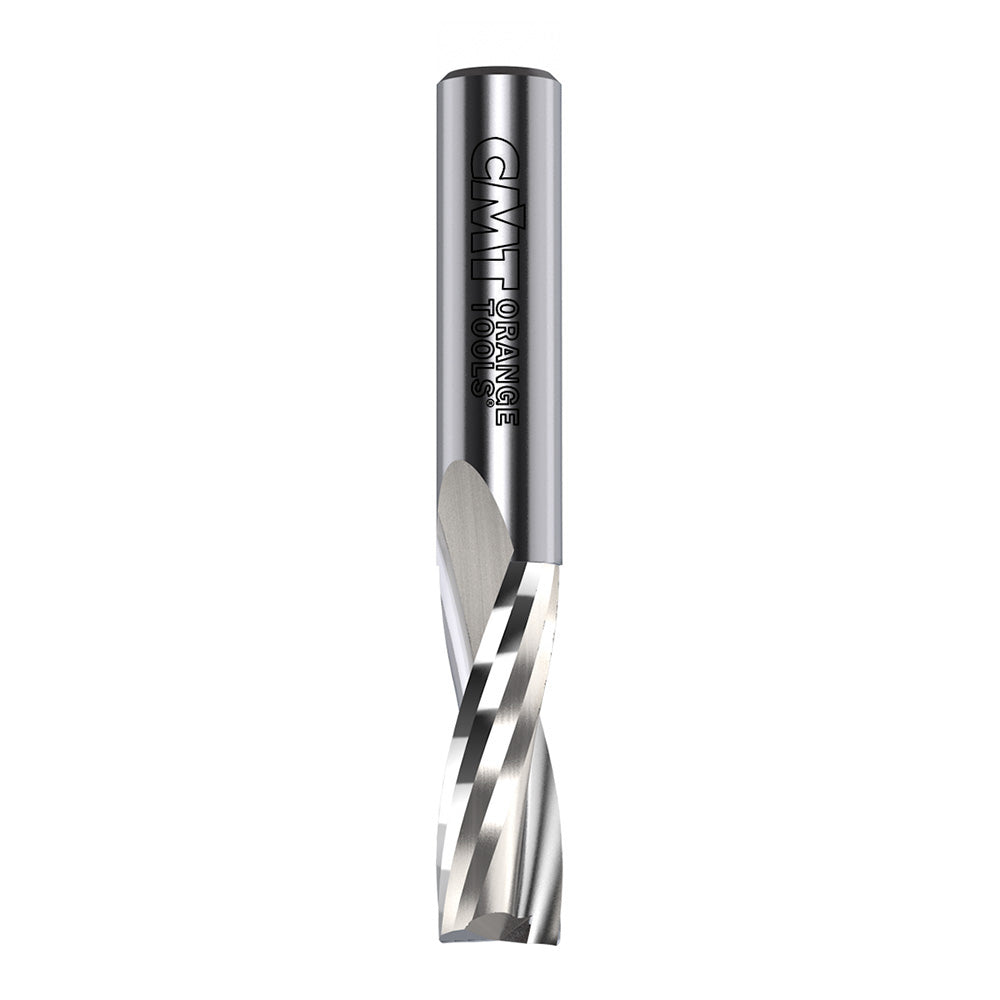

CMT Solid Carbide Upcut Spiral Bits

CMT

$84.99
Unit price per

Select

Quantity

+ -

Sharp technology with a new twist

A special super-micrograin carbide formulation was created to produce and hold a keen cutting edge. The new low-angle spiral is designed specifically to shear wood cleanly and provide efficient chip ejection. The tools run cooler and the edges last longer.

Increased feed rate and improved cutting quality for enhanced productivity with CMT!

TECHNICAL FEATURES:
• Premium quality HWM.
• 2 spiral cutting edges (Z2).
• Provide an excellent finish on the lower side of the workpiece.
• Upward chip ejection.

Details

Used for efficient contour cutting, end-trimming and panel sizing on solid wood, wood composites, plastic materials and laminates at high feed speed. Ensure to properly clamp workpieces. Can be used on machining centres, point-to-point boring machines, CNC routers and hand-held routers equipped with chucks or adaptors.

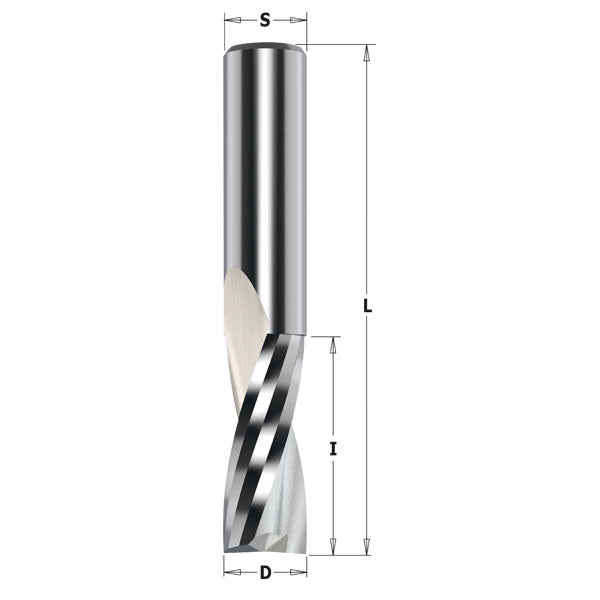

Item Code	D	I	L	S	Z	MAT	RH-LH
191.001.11	1/8	1/2	2	1/4	2	HWM	RH
191.003.11	5/32	1/2	2	1/4	2	HWM	RH
191.005.11	3/16	3/4	2	1/4	2	HWM	RH
191.007.11	1/4	3/4	2	1/4	2	HWM	RH
191.008.11	1/4	1	2-1/2	1/4	2	HWM	RH
191.501.11	5/16	1	3	1/2	2	HWM	RH
191.503.11	3/8	1-1/4	3-1/4	1/2	2	HWM	RH
191.505.11	1/2	1-1/4	3	1/2	2	HWM	RH
191.506.11	1/2	1-1/2	3-1/2	1/2	2	HWM	RH
191.507.11	1/2	2	4	1/2	2	HWM	RH
