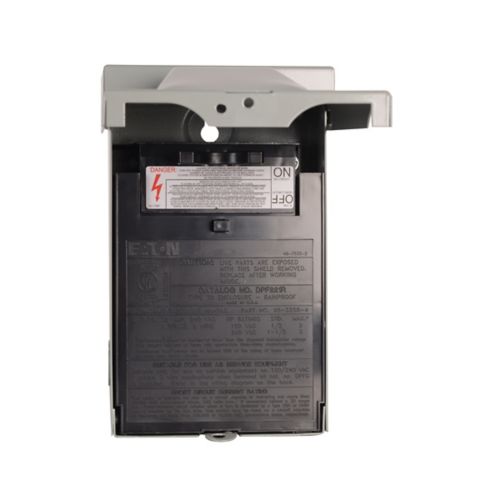

Eaton DPF221RT Air Conditioning Disconnect Fused Pullout 30 A

Eaton

+ -

Eaton air conditioning disconnect, Fused pullout, 30 A, 120/240V, 10 kAIC, #14-3 Cu/Al 60°C or 75°C, NEMA 3R Galvanized Steel enclosure, 1.5 hp at 120V, 3 hp at 240V, Individual Packaging for Resale


Product Specifications
Type Fused pullout
Amperage Rating 30A
Horsepower 1.50 hp at 120 V, 3 hp at 240 V
Voltage rating 120/240 V
Wire size #14-3 AWG Cu/Al
Color ANSI 61 gray
Enclosure NEMA 3R
Enclosure material Galvanized steel
Interrupt rating 10 kAIC
