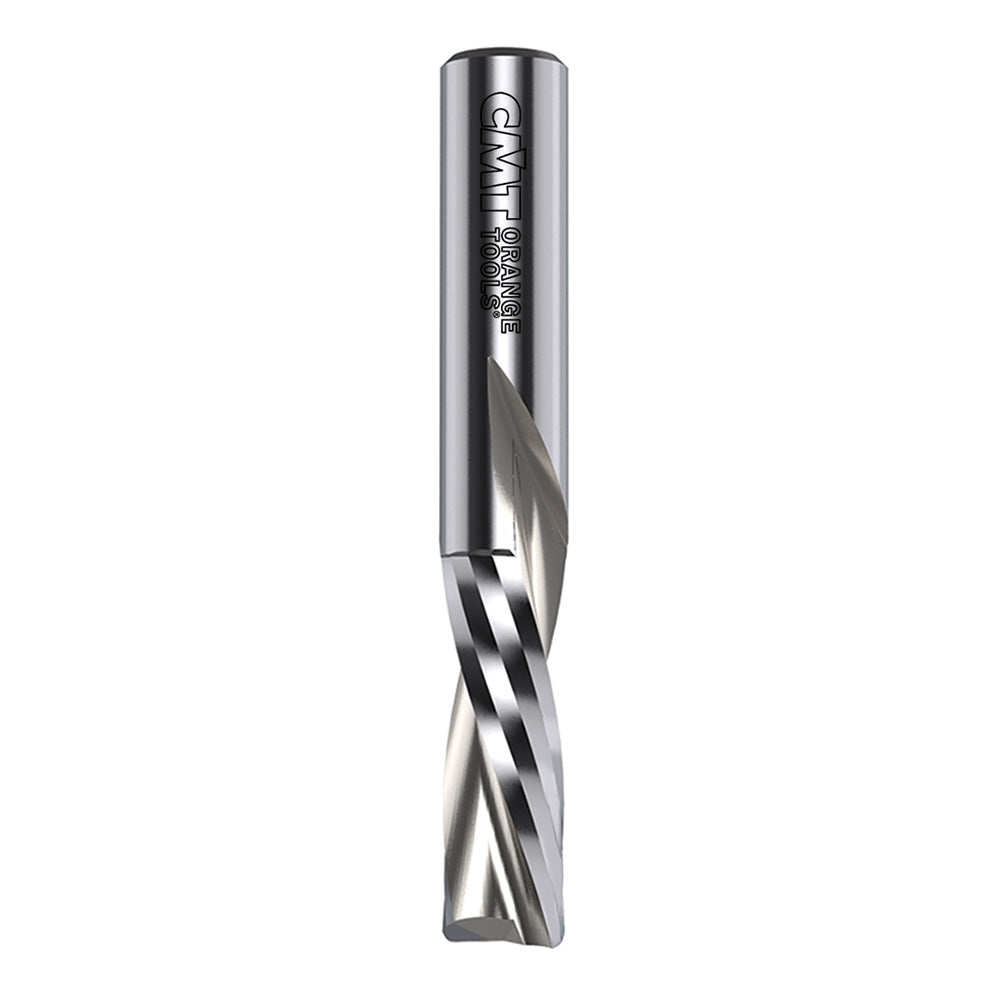

CMT Solid Carbide Downcut Spiral Bits

CMT

$88.99
Unit price per

Select

Quantity

+ -

Sharp technology with a new twist

A special super-micrograin carbide formulation was created to produce and hold a keen cutting edge. The new low-angle spiral is designed specifically to shear wood cleanly and provide efficient chip ejection. The tools run cooler and the edges last longer.

Increased feed rate and improved cutting quality for enhanced productivity with CMT!

TECHNICAL FEATURES:
• Premium quality HWM.
• 2 spiral cutting edges (Z2).
• Provide an excellent finish on the upper side of the workpiece.
• Downward chip ejection.

Details

Used for cutting, copying, panel sizing and any routing applications on solid wood, wood composites, plastic materials and laminates. Use a high feed speed on well-clamped workpieces. Can be used on machining centres, point to point machines, CNC routers and hand-held routers equipped with chucks or adaptors.

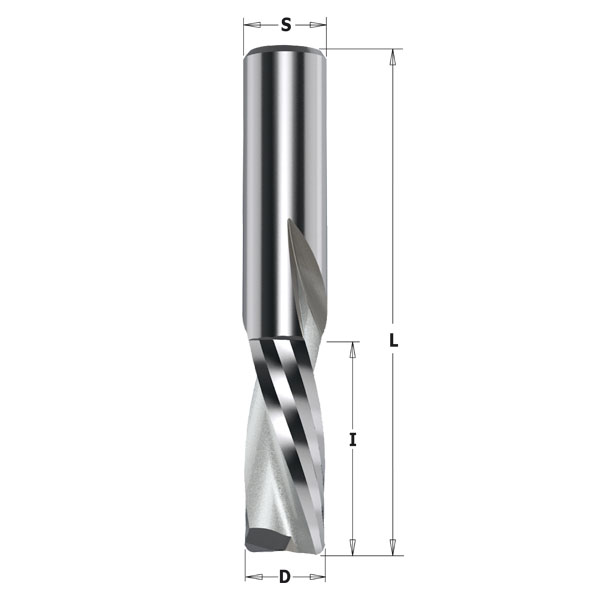

Item Code	D	I	L	S	Z	MAT	RH-LH
192.001.11	1/8	1/2	2	1/4	2	HWM	RH
192.003.11	5/32	1/2	2	1/4	2	HWM	RH
192.005.11	3/16	3/4	2	1/4	2	HWM	RH
192.007.11	1/4	3/4	2	1/4	2	HWM	RH
192.008.11	1/4	1	2-1/2	1/4	2	HWM	RH
192.008.11-X10	1/4	1	2-1/2	1/4	2	HWM	RH
192.501.11	5/16	1	3	1/2	2	HWM	RH
192.501.11-X10	5/16	1	3	1/2	2	HWM	RH
192.503.11	3/8	1-1/4	3-1/4	1/2	2	HWM	RH
192.505.11	1/2	1-1/4	3	1/2	2	HWM	RH
192.505.11-X10	1/2	1-1/4	3	1/2	2	HWM	RH
192.506.11	1/2	1-1/2	3-1/2	1/2	2	HWM	RH
192.507.11	1/2	2	4	1/2	2	HWM	RH
