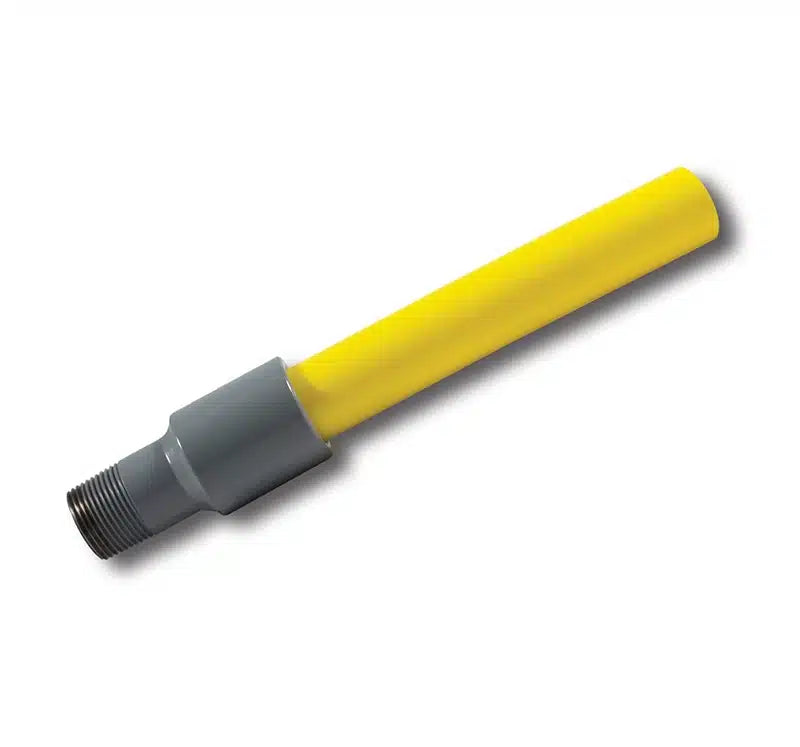

Pro-Flex 3/4” MPT Steel Transition x 1/2” CTS .090

APPLICATION

The Pro-PolyTM PETR Series Transition Fitting is for use in Natural and LP (Propane) underground gas applications utilizing Polyethylene (MDPE) gas pipelines. Meets or exceeds ASTM D2513 Category 1 and ASTM F1973 specifications. Used to transition from steel underground piping to MDPE underground piping.

INSTALLATION

Product installation and system testing shall be completed by a qualified installer in accordance with NFPA 54/ANSI Z223.1 (National Fuel Gas Code), National Gas & Propane Installation Code B149.1 (Canada), state/local codes and the Pro-Flex Installation/ Training Guide.

MATERIALS

Steel Gas Carrier: ASTM A53/API 5L

Pipe Threads: ASTM B117

Polyethylene Pipe: ASTM D2513 CODES, STANDARDS & LISTINGS: Codes: NFPA 54, ICC Codes [IFGC, IRC, IPC, IMC], UPC, UMC Standards: ASTM F1924-10218 Listings: IAPMO

Epoxy Coating: 8mm minimum thickness, AGA 49 grey, Cathodic disbondment testing per ASTM G8, Salt Spray testing per ASTM B117, Impact resistance testing per ASTM G14

SPECIFICATIONS

APROVED GASES: LP (PROPANE) & NATURAL GAS

MAX WORKING PRESSURE: 80 PSIG

MAX TESTING PRESSURE: 120 PSIG
